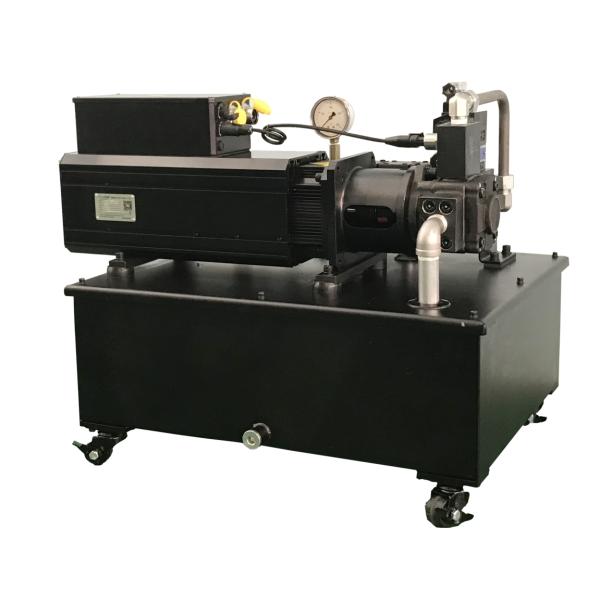

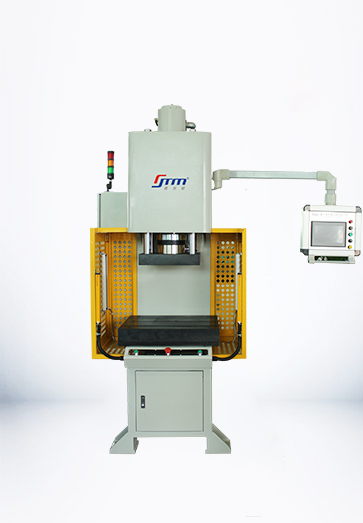

EIS Integrated Hydraulic Servo System for Hydraulic Press
1.Name:Integrated Hydraulic Servo System for Hydraulic Press
2.Introduce:Integrated Hydraulic Servo System,the pressure and flow controlled double closed-loop,by control the motor speed to control the oil supply of hyrauluc power unit.
3.Model:Hydraulic Press have many type,the system model choose according to the hydraulic press parameters.
4.Application:Can be used on Hydraulic Press,Injection molding machine,Lathe,CNC,Vulcanizing Machine,Shoe Machine,Bending Machine,Pipe Bender,wood-working machine and so on.
4.Feature:
(1)Compare with the tranditional hydraulic press hydraulic power unit the noise and temperature is lower.
(2)Power Saving:Compare with the tranditional hydraulic press hydraulic power unit can save 70% power.
(3)Easy assemble and operate convenience.Before delivery out the engineer will set all the parameters according to customer's equipment.After get the system customer only need to connect the power cable.If customer want to adjust some parameters only need to re-set on the keyboard(include keyboard type and terminal type) or PLC of system accroding to the manual document.
(4)Compare with the tranditional hydraulic press hydraulic power unit the Integrated Hydraulic Servo System can reduce the hydraulic shock effectively.
5.Parameter of Motor:
| EIS Model | EIS037T-0013 | EIS055T-0016 | EIS075T-0020 | EIS090T-0025 | EIS110T-0032 | EIS150T-0040 | EIS185T-0050 | EIS220T-0063 |
| Basic Data | Carrier Frequency | 2kHz~16kHz；Can adjust the Carrier Frequency according to overload |
| Control Way | close-loop vector control |
| Speed Ratio | 1 :1000 |
| Rotating Speed | ±0.02% |
| Overload Capacity | 150% rated current 60S,180% rated current 3S |
| Starting Torque | 0Hz/180% |
| Power | Voltage Frequency | 3 Phase,50/60Hz |
| Voltage Range | 380V |
| Rated Power | 3.7kW | 5.5kW | 7.5kW | 9.0kW | 11kW | 15kW | 18.5kW | 22kW |
| Rated Output current | 9A | 13A | 17A | 20A | 25A | 32A | 37A | 45A |
| Rated Input current | 10A | 14A | 18A | 21A | 26A | 35A | 38A | 46A |
| Control Terminal | Input Terminal | LP12-8/7 Air Plug,can customized |
| Output Terminal | LP12-8/7 Air Plug,can customized |
| Communication Terminal | Integrated LP12-7 Air Plug,include 485 |
| Power Out put | 10V/13V/24V Power Output |
| Keyboard | LED | Display Parameter |
| Key | 8 Keys |
| Environment | altitude | 0~2000m,Over 1000m derating,increase 100m derate 1% |
| Application Place | indoor,avoid direct sunlight,non-corrosive,flammable gas,Wihout oil mist,water vapor and so on |
| Environment Temperature | -10℃~40℃,40~50℃ derating,increase 1℃ derate 1.5% |
| Vibration | Lower 0.6g |
| Store Temp | -20℃~60℃ |
| Humidity | Under 90%RH (non condensing) |
| Cooling Way | forced cooling |
